Flash Dryer

We specialize in offering our clients flash dryers, which are widely demanded in the global market. In these flash dryers, wet feed is dispersed into the hot air where the material gets solidified in the duct. The material is separated in the cyclones or bag filters. Some applications require pre-conditioning of feed by back-mixing of dry product or mixing with oversize particles tapped through particle classifiers installed at suitable locations on the drying duct.

AVM offers Customized Flash Drying Systems with variety of Configurations.

Material Feeding Configurations:

• Mono Screw Feeder
• Double Screw Feeder.
• Double Paddle Mixer for back mixing of dry product.
• Feed Bin with Lump Breaker.
• Volumetric feeder.
• Rotary Feeder.

Feed Disperser Configurations:

• Sling Fan.
• Cage Mill.
• Mechanical Scatterer.
• Chain Slinger.
• Ventury Feeder.
• Combinations of above.

Oversize Particle Classifier Configurations:

• Deflector Hood
• Ring Classifier

Air Heating System Configurations:

• Direct Fired / Indirect Fired Air Heaters: using Liquid / Gaseous Fuels.
• Direct / Indirect Fired Air Heaters: using Solid Fuels, Agro Waste, Saw Dust, Rice Husk, Coal, Briquette etc.
• Indirect Air Heaters: Using Steam / Hot Oil / Thermic Fluid
• Electric Air Heaters: using electricity.

Product / Fines Recovery System Configurations

• Cyclone Separators – Mono, Twin, Quadruple, Multi etc.
• Bag Filters – Reverse Pulse jet, Mechanical shaking etc.
• Wet Scrubbers – Direct Contact Ventury, Adjustable Ventury, Packed scrubbers etc.

Optional Features Configurations:

• Product Cooling and Conveying Systems.
• Exhaust gases Recycling for better thermal efficiencies.
• Safety accessories like Static Jumpers, Fire Fighting Systems, Rupture Disc etc.
• Computerized control system through PLC / DCS & SCADA.

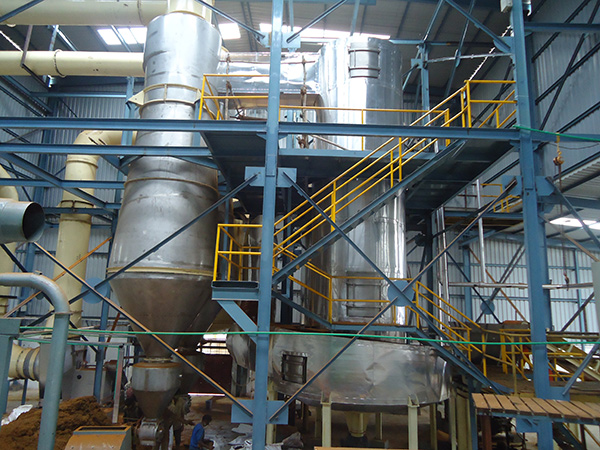

Suitable feeding mechanism is used for the wet feed material into the dryer housing. The feeding mechanism is used above the rotating swirl agitator. Specially designed distributor is used to let the hot air/gas stream in it. The material remains in agitated bed and dried material is carried forward & separated in the Cyclones or bag filters. Some applications require pre-conditioning of feed by back-mixing of dry product. AVM uses special configuration to customize agitated swirl flash dryers.

AVM offers Customized Agitated Swirl Flash Drying Systems with variety of Configurations.

Material Feeding Configurations:

• Mono Screw Feeder
• Double Screw Feeder.
• Double Paddle Mixer for back mixing of dry product.
• Feed Bin with Lump Breaker.
• Volumetric feeder.
• Rotary Feeder.
• Specially design double shaft feeder followed by mono screw.
• Positive Displacement Screw Pump for Viscous liquid / Pastes.

Particle Classifier Options:

• Orifice Classifier.
• Rotary particle Classifier.

Air Heating System Configurations

• Direct Fired / Indirect Fired Air Heaters: using Liquid / Gaseous Fuels.
• Direct / Indirect Fired Air Heaters: using Solid Fuels, Agro Waste, Saw Dust, Rice Husk, Coal, Briquette etc.
• Indirect Air Heaters: Using Steam / Hot Oil / Thermic Fluid
• Electric Air Heaters: using electricity.

Product / Fines Recovery System Configurations:

• Cyclone Separators – Mono, Twin, Quadruple, Multi etc.
• Bag Filters – Reverse Pulsejet, Mechanical shaking etc.
• Wet Scrubbers – Direct Contact Ventury, Adjustable Ventury, Packed scrubbers etc.

Optional Features Configurations:

• Product Cooling and Conveying Systems.
• Exhaust gases Recycling for better thermal efficiencies.
• Safety accessories like Static Jumpers, Fire Fighting Systems, Rupture Disc etc.
• Water Cooled Dryer Agitator bearing housing for high temp. operation.
• Computerized control system through PLC / DCS & SCADA.

Fluid Bed Dryers / Cooler are widely used in the Industry for gentle drying / cooling of free flowing solids.

Perforated plate is used to fluidize the material with the help of air stream. The fluid material is imparted mechanical energy by vibration. Plenum is used below the perforated plate to make the cooling media. Higher rates of heat transfer is achieved by the intensive interaction and of the material & drying / cooling media ( air / gas). Adjustable discharge wire is used to adjust the product residence time. Product drying and cooling is carried out in a single unit.

AVM offers Customized Fluid Bed Drying Systems with variety of Configurations.

Continuous Fluid Bed Configurations:

• Static Fluid Bed Dryers
• Vibratory Fluid Bed Dryers

Material Feeding Options:

• Rotary Feeder
• Screw Feeder

Product / Fines Recovery System Configurations :

• Cyclone Separators – Mono, Twin, Quadruple Cyclones etc.
• Bag Filters – Reverse Pulsejet, Mechanical Shaking etc.

Air Heating System Configurations:

• Direct Fired / Indirect Fired Air Heaters: using Liquid / Gaseous Fuels.
• Direct / Indirect Fired Air Heaters: using Solid Fuels, Agro Waste, Saw Dust, Rice Husk, Coal, Briquette etc.
• Indirect Air Heaters: Using Steam / Hot Oil / Thermic Fluid
• Electric Air Heaters: using electricity.

Optional Features Configurations :

• Automatic CIP system.
• Liquid Spraying System for Product having requirement of Coating / Lecethination.
• Safety accessories like Rupture Disc, Fire Fighting System.
• Computerized Control System through PLC/ DCS / SCADA.
